1. Industry Background and Market Demand
With the continuous upgrading of industrial
power distribution systems and urban
power grid infrastructure, 10–35kV medium-voltage power networks have become the core carrier of power supply for industrial parks, commercial complexes, municipal engineering and industrial production lines. Traditional electromagnetic relay protection devices have prominent limitations such as fixed protection parameters, single functional logic, poor anti-interference ability and inconvenient post-fault data tracing, which can no longer adapt to the requirements of modern power systems for intelligent monitoring, precise protection and unattended operation.
At present, power operation management departments and industrial end-users have put forward higher standards for power system stability and fault response efficiency. Fast fault isolation, accurate data acquisition, remote intelligent management and complete fault recording capabilities have become rigid requirements for medium-voltage power distribution equipment. As a core terminal device of medium-voltage power distribution protection, microcomputer protection has formed a stable and growing market demand, covering new energy power distribution, traditional industrial manufacturing, urban power grid transformation and other fields. The market urgently requires high-stability, high-precision and highly integrated protection devices to reduce power failure losses and improve the intelligent operation level of power grids.
2. Core Concept and Key Technology
Microcomputer Protection takes single-chip microcomputer and embedded industrial control chip as the core control unit, and realizes intelligent protection and measurement and control of medium-voltage power distribution equipment through digital signal processing and power system fault identification algorithms. Different from passive protection of traditional relays, it adopts active signal acquisition and intelligent judgment mechanisms to complete automated power grid protection control.
The core key technologies include high-precision signal sampling technology, adaptive fault judgment algorithm and millisecond-level rapid tripping control technology. The device collects real-time secondary current and voltage signals output by CT and PT, converts analog signals into digital signals through high-speed AD conversion modules, and filters and analyzes interference signals such as harmonic and electromagnetic noise generated in the operation of high-voltage switchgear. Through built-in power system fault logic models, it accurately identifies common faults such as short circuit, overload, grounding failure and phase loss, and outputs tripping instructions within milliseconds to cut off faulty circuits. Meanwhile, it integrates remote communication and waveform recording technologies to support real-time data uploading and post-fault event tracing, realizing the integration of protection, measurement, control and communication.
3. Product Structure, Performance and Manufacturing Process

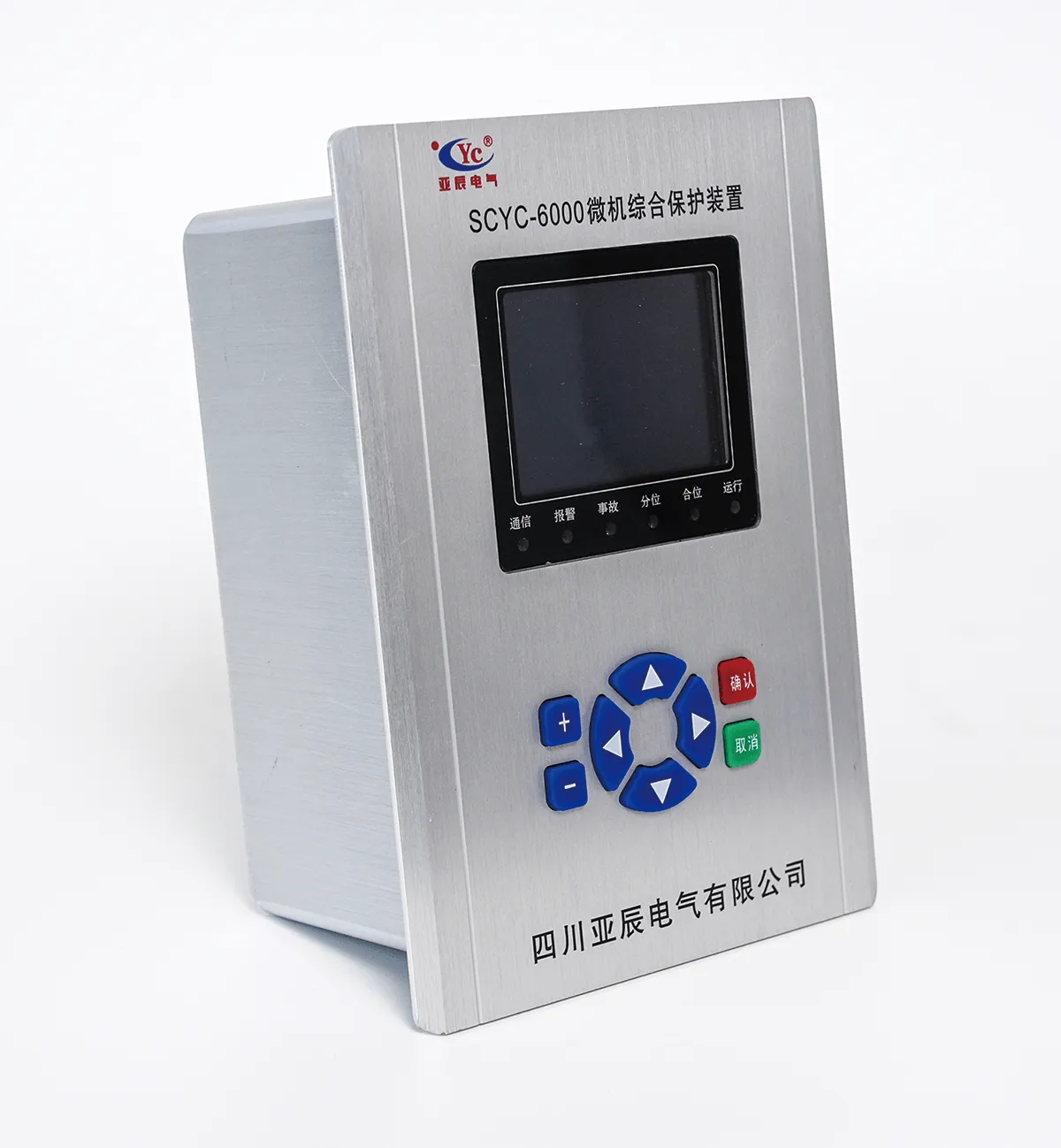

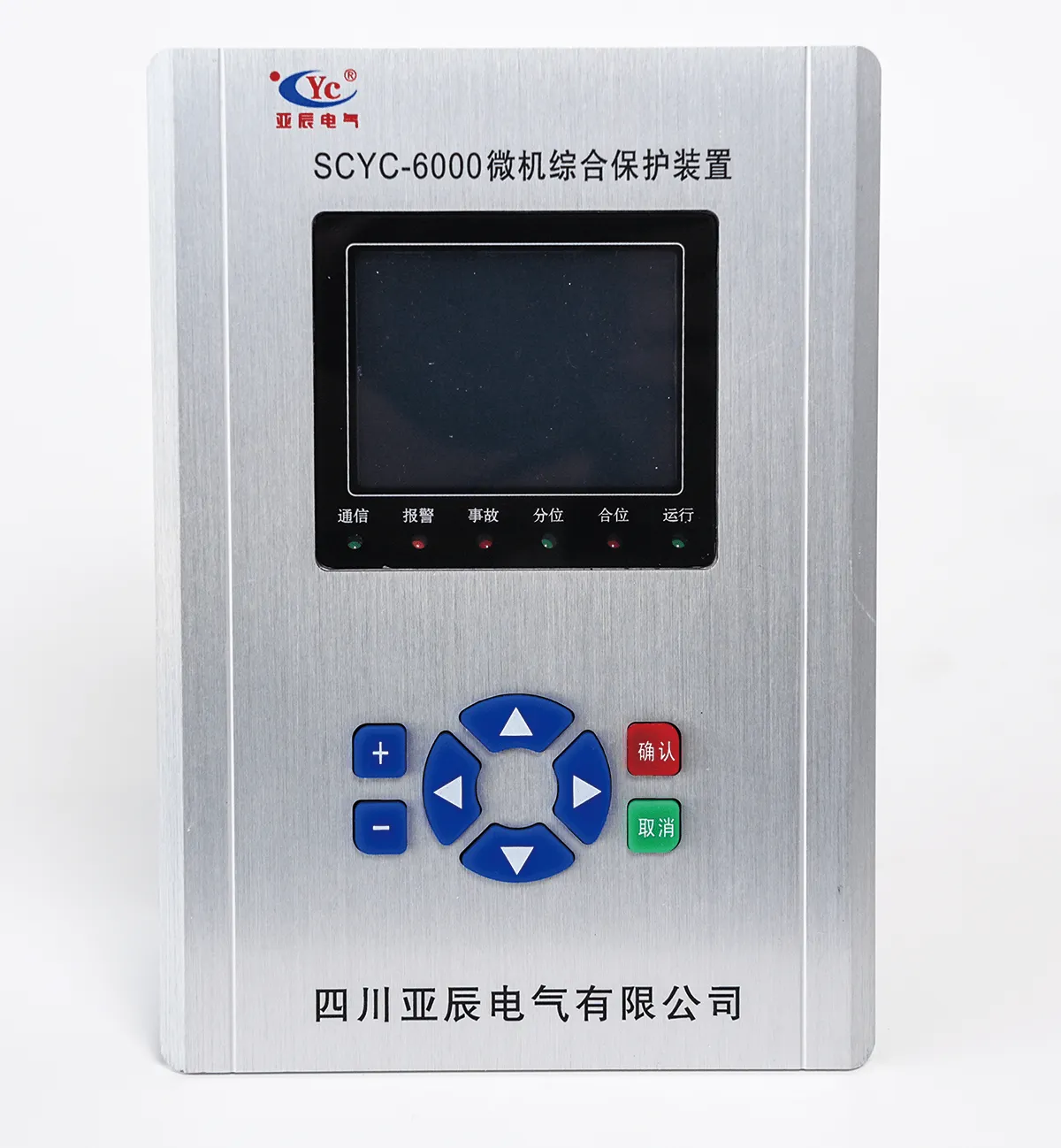

In terms of structural design, the Microcomputer Protection device adopts an integrated embedded panel structure, which is compatible with the internal installation space of standard 10–35kV high-voltage switchgear. The whole machine is divided into three core functional modules: signal acquisition module, main control operation module and output execution and communication module. The signal acquisition module is responsible for accessing CT/PT secondary signals and completing signal isolation and filtering; the main control module undertakes data calculation, fault judgment and logic operation; the output and communication module realizes tripping signal output, local alarm and remote data interaction.
In terms of core performance indicators, the device achieves millisecond-level fault action response, with protection action delay strictly controlled within 30ms, and the measurement accuracy of voltage, current and power parameters reaching 0.5 level. It has strong electromagnetic compatibility, which can resist strong electromagnetic interference generated by high-voltage switch opening and closing, and adapt to harsh industrial operation environments such as high temperature, humidity and dust. In terms of materials, the shell adopts high-strength flame-retardant engineering plastics and metal shielding structural parts, which have flame retardant, anti-corrosion and anti-interference properties, and meet industrial electrical safety standards.
The manufacturing process follows industrial-grade precision production specifications. The core circuit board adopts SMT patch integrated processing technology, and undergoes high-temperature aging testing, electromagnetic compatibility testing, precision calibration and full-function simulation testing before leaving the factory. Each device completes multi-scene fault simulation verification to ensure the stability and consistency of batch products, avoiding functional failure caused by process errors.
4. Key Factors Affecting Product Quality and Performance
The performance stability of Microcomputer Protection is affected by multiple links such as core components, algorithm optimization, production calibration and environmental adaptability. First, the sampling precision of AD conversion chips and the operation stability of main control chips directly determine the accuracy of fault judgment; low-precision chips are prone to signal distortion and cause protection misoperation or refusal to operate. Second, the rationality of the built-in fault algorithm affects the response speed and recognition accuracy of complex faults such as intermittent short circuits and harmonic overloads.
In addition, the shielding performance of the device structure and the stability of the wiring process are key factors affecting on-site operation. Poor electromagnetic shielding will lead to signal interference in high-voltage environments, resulting in data deviation. Inaccurate factory parameter calibration will cause errors in measurement and protection threshold judgment. Long-term high-temperature and humid operation environments will also accelerate the aging of internal electronic components and reduce the service life and operation stability of the device.
5. Supply Chain and Supplier Selection Standards
The core components of Microcomputer Protection include industrial control main control chips, AD sampling chips, relay output modules, communication modules and shielding structural parts. Supplier selection focuses on industrial-grade qualification, batch stability and after-sales technical support capabilities. For core electronic chips, suppliers must have long-term industrial electrical component supply experience, and their products need to pass EMC electromagnetic compatibility certification and industrial temperature resistance certification to ensure adaptability to high-voltage power distribution scenarios.
For structural parts and auxiliary materials, suppliers are required to provide flame-retardant, anti-corrosion and anti-interference material test reports, with stable batch processing accuracy. In terms of supply chain management, priority is given to suppliers with complete production quality control systems and batch delivery capabilities, to avoid product quality fluctuations caused by component replacement and process differences. Meanwhile, establish a long-term component performance tracking mechanism to ensure the consistency and reliability of finished device performance.
6. Common Industry Pain Points and Technical Problems
In the actual application of medium-voltage power distribution systems, the industry has long faced multiple pain points in protection equipment operation. First, some low-end protection devices have single fault identification logic, which cannot accurately distinguish transient faults and permanent faults, resulting in frequent mis-tripping and unnecessary power outage losses. Second, individual devices have poor environmental adaptability, and are prone to data drift and functional failure in high electromagnetic interference and high temperature industrial scenarios.
Third, the data recording and remote management capabilities of traditional protection devices are insufficient. The fault waveform data is incomplete, which is not conducive to later fault analysis and grid optimization. Fourth, the compatibility of different brands of devices is poor, and the communication protocols are not unified, resulting in difficult docking with the upper-level power monitoring system and poor overall intelligent management. In addition, the threshold parameter setting of some devices is complicated, relying on professional manual debugging, which increases the operation and maintenance cost of power distribution equipment.
7. Application Scenarios and Industry Cases
Microcomputer Protection is widely applicable to all core cabinet types of 10–35kV high-voltage power distribution systems, covering high-voltage incoming cabinet, outgoing cabinet, bus coupler cabinet, transformer cabinet, motor cabinet, capacitor cabinet and PT cabinet, realizing full-scene protection and measurement and control of medium-voltage power distribution equipment.
In industrial manufacturing scenarios, the device is applied to motor and capacitor loop protection of factory high-voltage power distribution rooms, effectively avoiding equipment burnout and production shutdown caused by motor overload and short-circuit faults. In municipal power grid scenarios, it is used for protection and switching control of bus coupler cabinets of urban community and commercial park power distribution stations, realizing fast fault isolation and power supply switching, and improving power supply reliability. In new energy scenarios, it matches the grid-connected high-voltage cabinet of photovoltaic and wind power distributed power stations, completes fault protection and power data monitoring of grid-connected loops, and ensures the safe and stable grid-connected operation of new energy power.
8. Current Trends and Future Development Direction
With the in-depth construction of smart power grids and industrial Internet, Microcomputer Protection is developing towards high integration, intelligent algorithm upgrading, full-scene adaptation and cloud collaborative management. At present, the industry has gradually eliminated single-function protection devices, and integrated devices with protection, measurement, control, communication and fault analysis functions have become the mainstream market choice.
In the future, the device will further realize intelligent adaptive protection, automatically adjusting protection thresholds and action logic according to the real-time operation state of the power grid, to adapt to the fluctuating power supply characteristics of new energy access. Meanwhile, combined with IoT and big data technology, the device will realize remote real-time monitoring, predictive maintenance and fault intelligent analysis, transform from passive fault protection to active state early warning. In addition, high-precision sampling, stronger electromagnetic anti-interference performance and standardized communication protocol compatibility will become the core optimization directions of products, meeting the higher requirements of smart power grids for fine power distribution management.
9. FAQ
Q1: What is the essential difference between Microcomputer Protection and low-voltage multi-functional power meters?
A1: The two have fundamental functional positioning differences. Low-voltage multi-functional power meters focus on real-time monitoring, data display and statistical analysis of power parameters, without high-speed fault judgment and power-off protection execution capabilities. Microcomputer Protection is a professional IED protection device for medium-voltage high-voltage systems, with core functions of millisecond-level fault tripping and equipment safety protection, which is the core guarantee for high-voltage power distribution system safety.
Q2: Can the device adapt to complex industrial environments with strong electromagnetic interference?
A2: Standard industrial-grade Microcomputer Protection devices adopt professional electromagnetic shielding structure and anti-interference algorithm filtering technology, and pass strict EMC electromagnetic compatibility tests. It can stably operate in high-voltage switching interference, industrial frequency harmonic interference and high-temperature and humid environments, which fully meets the operating conditions of industrial high-voltage switchgear.
Q3: What common faults can the Microcomputer Protection device identify and handle?
A3: It can accurately identify and respond to various common medium-voltage power grid faults, including phase short circuit, single-phase grounding fault, equipment overload, phase loss, overvoltage and undervoltage. It realizes fast tripping protection for faulty circuits and local and remote alarm reminder, and records fault time, waveform and parameter data for subsequent troubleshooting.
Q4: Is professional debugging required for on-site installation and use?
A4: The device supports simplified parameter setting and one-key configuration of common working conditions. Conventional scenarios can complete parameter debugging according to standard templates. For special working conditions such as new energy grid connection and special industrial equipment power supply, fine debugging by professional technicians is recommended to ensure the optimal matching of protection logic and on-site working conditions.
