1. Industry Background & Market Demand
With the continuous upgrading of industrial
power distribution systems and the expansion of large-scale infrastructure projects globally, modern low-voltage power distribution scenarios have put forward higher requirements for power supply continuity, maintenance efficiency and operational safety. Traditional fixed low-voltage switchgear adopts integrated circuit layout, which requires overall power outage for circuit failure maintenance, component replacement and line commissioning, easily causing large-scale production shutdown and equipment downtime losses.
In industrial manufacturing, data center, new energy power station and urban large public building projects, the power distribution system has the characteristics of numerous branch circuits, high load continuity requirements and frequent equipment operation and maintenance. The market urgently needs a modular, maintainable and high-safety power distribution device to solve the pain point of overall power outage caused by single circuit failure. Under this industry background, low voltage complete set of withdrawable switchgear represented by GCS, GCK and MNS has gradually become the mainstream configuration of medium and high-end low-voltage power distribution systems, and is widely recognized in global industrial and construction power markets for its flexible operation and high reliability.
2. Core Concept & Key Technology
The core design concept of low voltage complete set of withdrawable switchgear is
single-circuit independent modularization, which realizes the physical isolation and independent operation of each outgoing circuit. Different from the integrated structural design of fixed switchgear, each power distribution, control and protection circuit of this equipment is packaged into a detachable drawer unit, which corresponds to independent electrical components such as
circuit breakers, contactors and relays.
Its key technical advantage lies in the plug-in busbar connection mechanism and three-position working state design. When the drawer unit is pushed into the cabinet body in place, the built-in conductive plug is automatically connected with the main busbar of the switchgear, realizing normal power supply and load operation; when the drawer is pulled out to the test position, the circuit can be powered on for functional debugging without load access; when fully pulled out, the single circuit is completely disconnected from the main busbar and secondary control loop, achieving physical isolation of electricity. This technology fundamentally avoids the risk of live maintenance and realizes non-stop maintenance of the whole cabinet, only needing to replace the faulty drawer unit independently without affecting the normal operation of other circuits.
3. Product Structure, Performance, Materials & Manufacturing Process
3.1 Structural Composition

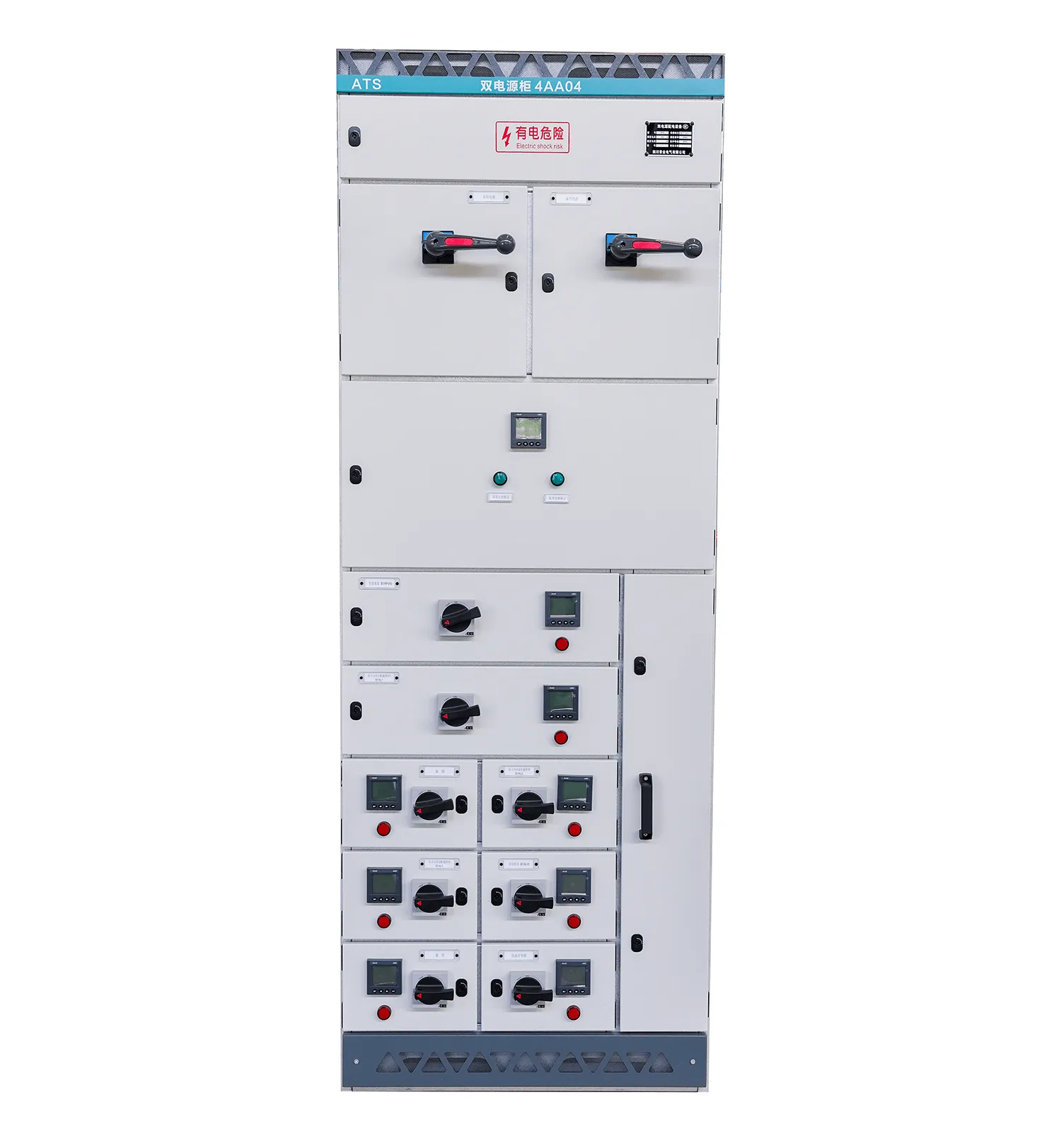

The whole set of equipment is composed of cabinet frame, main busbar system, drawer functional unit, secondary wiring system, interlocking protection mechanism and heat dissipation structure. The cabinet body adopts assembled frame structure, which is divided into upper busbar room, middle drawer functional room and lower cable room through partition plates. The independent drawer units are arranged in layers and columns in the functional room, with each unit completely isolated by metal partitions to prevent inter-circuit short circuit and arc flash spread.
The three mainstream models have differentiated structural positioning: MNS has high modularity and flexible combination, suitable for complex multi-circuit scenarios; GCS focuses on industrial heavy-load working conditions, with strong structural stability; GCK is optimized for control circuit scenarios, with compact layout and high space utilization.
3.2 Core Performance Indicators
The rated working voltage of the equipment is 400V/690V, the rated current of single drawer unit ranges from 16A to 4000A, and the short-time withstand current can reach 50kA~80kA, which meets the short-circuit protection requirements of industrial heavy-load systems. The equipment has mechanical electrical double interlock performance, which can prevent misoperation such as live drawer pulling and wrong position power transmission. The overall protection level of the cabinet can reach IP30~IP54, adapting to different indoor industrial and civil environments. In addition, the drawer unit supports quick replacement within 3-5 minutes, greatly improving the emergency maintenance efficiency of the power distribution system.
3.3 Main Materials
The cabinet frame and drawer shell adopt high-quality cold-rolled steel plate or galvanized steel plate with a thickness of 1.5mm~2.5mm, which has high structural strength and anti-deformation ability. The conductive busbar is made of T2 red copper with high conductivity, and the surface is treated with tin plating or silver plating to reduce contact resistance and avoid heating during long-term operation. The insulating parts such as partition plates and guide rails adopt flame-retardant ABS and epoxy resin board, with flame retardant grade reaching UL94 V-0, which effectively prevents the spread of electric fire.
3.4 Manufacturing Process
The cabinet body is processed by numerical control punching, laser cutting and bending integrated process, with high dimensional accuracy of components and good assembly consistency. The surface of the cabinet body adopts electrostatic spraying and high-temperature curing process, with strong anti-corrosion and anti-oxidation ability, adapting to long-term indoor operation. The drawer plug connector adopts precision stamping and CNC finishing process to ensure stable plugging accuracy and good electrical contact performance after thousands of plugging operations. All busbar connections adopt crimping and bolt locking dual processes to avoid loose contact caused by mechanical vibration.
4. Key Factors Affecting Product Quality & Performance
First, the precision of drawer plugging structure is the core factor affecting operational stability. The fit tolerance of the conductive plug and busbar interface directly determines the contact resistance. Excessive tolerance will cause local heating of the circuit, and even trigger short-circuit faults in long-term operation.
Second, the reliability of the mechanical interlock mechanism is a key safety indicator. Unqualified interlock structures may cause misoperation of live plugging, bringing electric shock and arc flash risks to operation and maintenance personnel. The fatigue resistance of the interlock structure after long-term plugging also determines the service life of the equipment.
Third, material quality directly restricts equipment performance. Impure copper busbar or unqualified flame-retardant insulating materials will reduce the equipment's short-circuit resistance and flame-retardant ability, and cannot adapt to high-load and high-temperature industrial working conditions. In addition, the cabinet heat dissipation structural design is crucial; unreasonable heat dissipation gaps and air duct layout will cause heat accumulation inside the cabinet, accelerating component aging.
Finally, the consistency of assembly process affects the overall operating stability of the switchgear. Uneven busbar wiring, loose component fixation and inconsistent drawer plugging stroke will lead to differences in the operating performance of each unit and reduce the overall reliability of the power distribution system.
5. Supply Chain & Supplier Selection Criteria
The supply chain of low voltage complete set of withdrawable switchgear covers metal structural parts, conductive busbars, low-voltage electrical components, insulating materials and finished equipment assembly. The core components such as circuit breakers and interlock mechanisms are mainly supplied by professional low-voltage electrical brands, while the cabinet body and drawer structural parts are supported by precision metal processing manufacturers.
For end-users and engineering contractors, supplier selection needs to focus on four core standards. First, verify the supplier's independent customization and processing capability of withdrawable units, to ensure that the equipment can be adapted to differentiated circuit parameters and on-site installation conditions. Second, check the product's third-party test reports and industry certification qualifications, including short-circuit resistance, protection level and flame retardant performance test data, to ensure compliance with IEC and international electrical standards.
Third, assess the supplier's batch production consistency and quality control system, to avoid performance differences caused by manual assembly errors. Fourth, focus on after-sales service and spare parts supply capacity, ensure the rapid supply of replacement drawer units and vulnerable parts, and reduce equipment downtime caused by insufficient spare parts. In addition, for large-scale long-term projects, priority should be given to suppliers with standardized production lines and stable upstream material supply channels to avoid delivery delays and quality fluctuations.
6. Common Industry Pain Points & Technical Problems
In actual engineering operation and maintenance, the industry has summarized several typical pain points of withdrawable switchgear. First, after long-term plugging of drawer units, the conductive plugs are prone to wear and oxidation, resulting in increased contact resistance and local heating, which is the main cause of circuit overload tripping in daily operation.
Second, individual small and medium-sized manufacturers have simplified the interlock mechanism design, resulting in inflexible drawer switching, stuck plugging and even failure of position locking, which brings potential safety hazards to on-site operation. Third, the heat dissipation design of some compact models is insufficient. When multiple high-load drawers operate at full load simultaneously, the internal temperature of the cabinet exceeds the standard, accelerating the aging of internal components and reducing the service life of the equipment.
Fourth, the compatibility of drawer units of different manufacturers is poor. The structural size and wiring standards of GCS, GCK and MNS products of different brands are not completely unified, resulting in poor universality of spare parts and increased later operation and maintenance costs. In addition, the traditional withdrawable switchgear lacks real-time monitoring of internal temperature and plugging state, and potential faults cannot be pre-warned, relying entirely on manual regular inspection.
7. Application Scenarios & Industry Cases
Relying on the advantages of non-stop maintenance and modular replacement, low voltage complete set of withdrawable switchgear is widely used in key scenarios that require high power supply reliability and multi-circuit centralized power distribution.
In the data center and communication industry, MNS withdrawable switchgear is the mainstream power distribution equipment for server room low-voltage power distribution systems. A European tier-3 data center project adopts modular withdrawable switchgear to realize independent power distribution and independent maintenance of each server cabinet circuit. When a single circuit fails, the faulty drawer can be replaced in real time without affecting the overall power supply of the data center, ensuring the 99.999% power supply availability rate of the project.

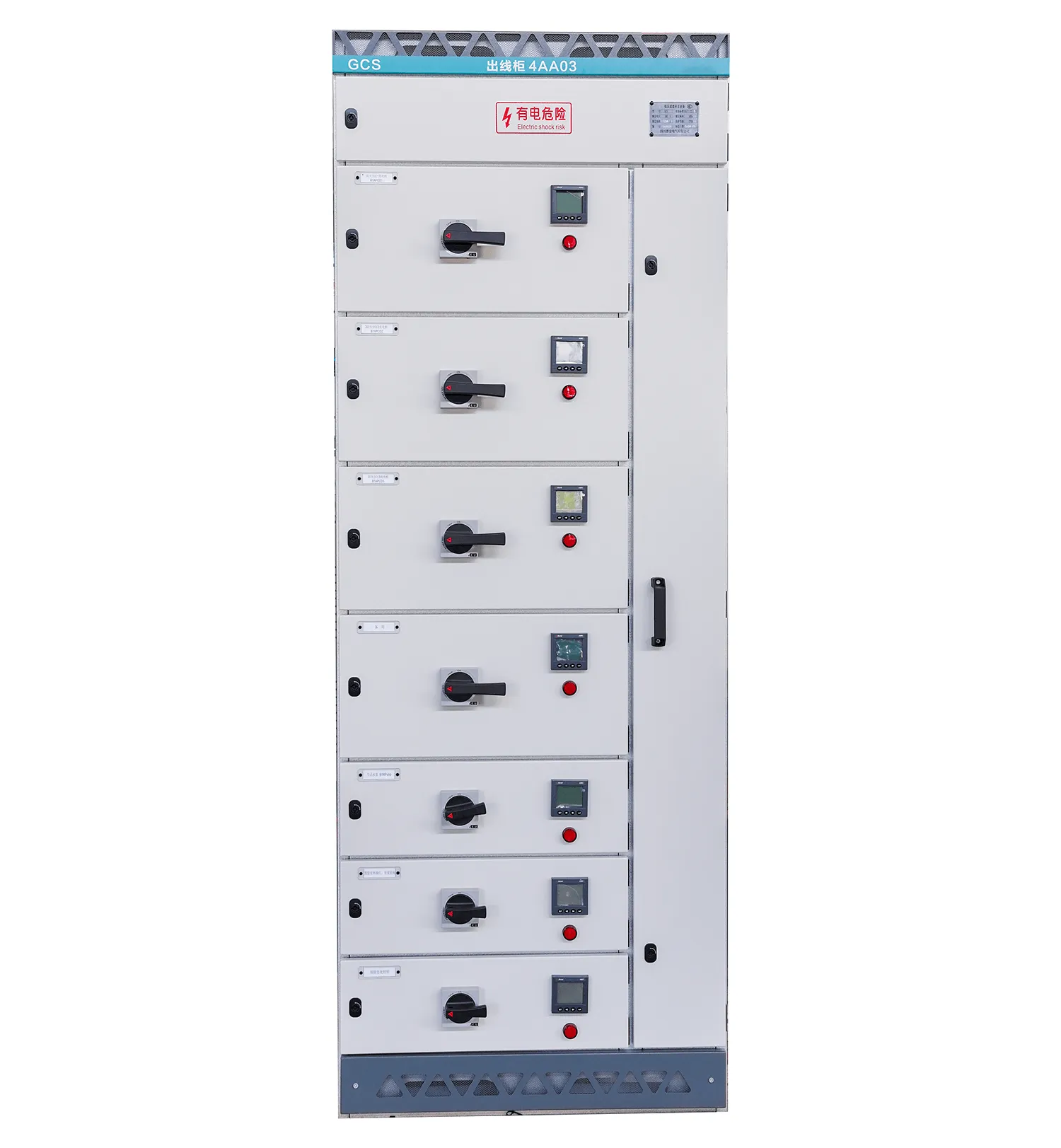

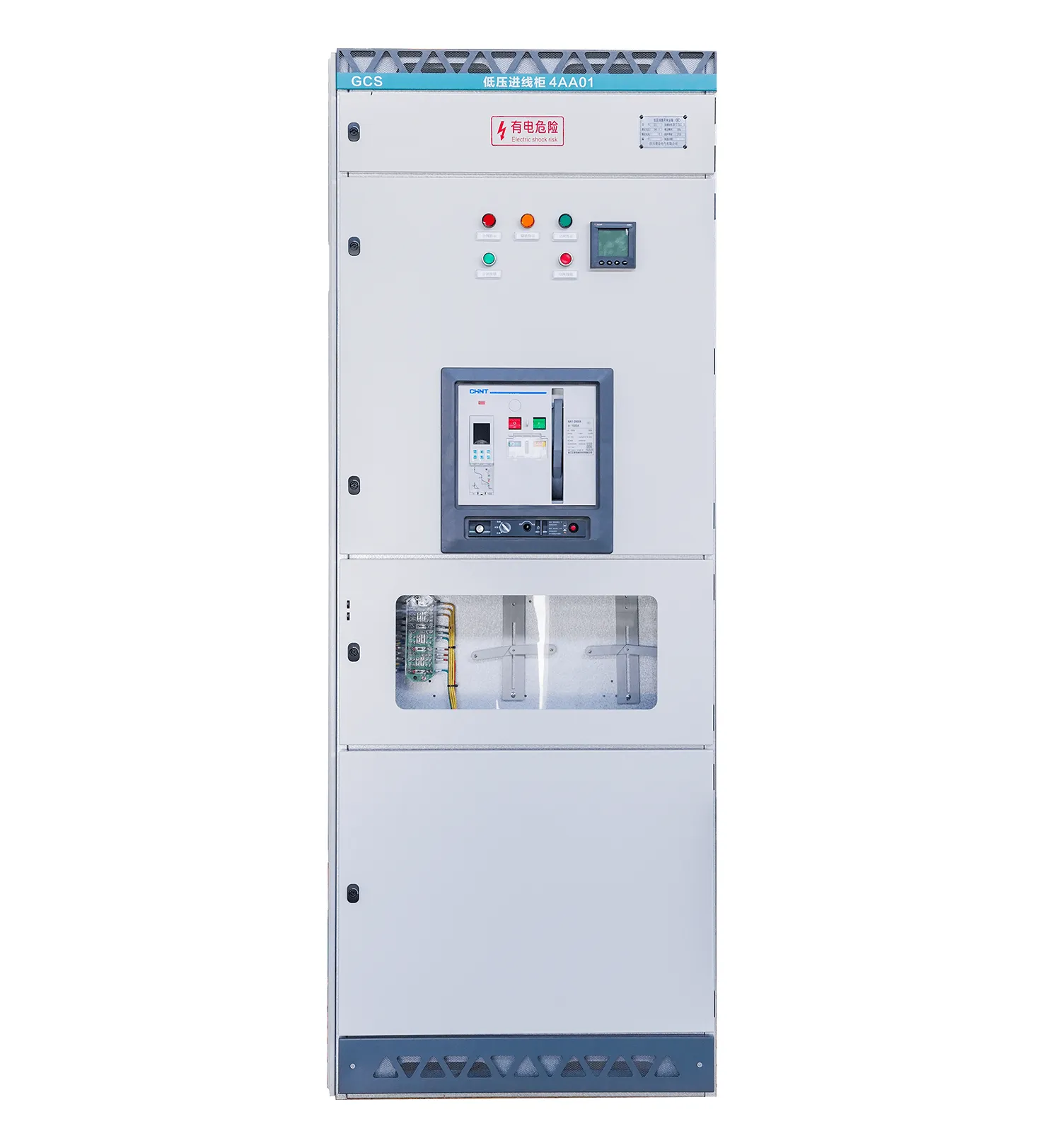

In industrial manufacturing, automobile manufacturing, chemical industry and mechanical processing plants with numerous production equipment circuits mostly adopt GCS withdrawable switchgear. A German automated production workshop uses this equipment to solve the problem of overall power outage maintenance of traditional fixed switchgear, effectively reducing production downtime losses caused by circuit faults.
In the
new energy and power industry, wind power plants, photovoltaic power stations and energy storage power stations adopt GCK withdrawable switchgear for low-voltage power distribution and grid-connected control. The equipment adapts to frequent load fluctuation working conditions of new energy power generation, and its quick replacement function ensures the stable operation of power generation equipment. In addition, it is also widely used in large shopping malls, railway stations, hospitals and other large public building projects to meet the continuous power supply demand of public facilities.
8. Current Trends & Future Development Direction
At present, the global low-voltage withdrawable switchgear industry is developing towards intelligence, high integration, energy saving and standardization. On the basis of retaining the core modular withdrawable structure, mainstream products are gradually equipped with intelligent monitoring modules, which can realize real-time collection of cabinet temperature, circuit current, voltage and plugging state data, and support remote fault alarm and data analysis, changing the traditional manual inspection mode.
In terms of structural optimization, the industry is promoting the lightweight and high-density design of drawer units. Through the optimization of internal wiring and component layout, the number of single-cabinet circuits is increased while ensuring heat dissipation and safety performance, improving the space utilization rate of power distribution rooms. In terms of materials, new high-conductivity and low-energy-consumption copper alloy materials and environmental protection flame-retardant insulating materials are gradually replacing traditional materials, reducing equipment operation energy consumption and improving environmental protection performance.
In the future, with the in-depth development of industrial Internet and smart power grid, low voltage complete set of withdrawable switchgear will realize deeper intelligent interconnection, and can linkage with the upper power management system to realize automatic fault diagnosis, intelligent load regulation and predictive maintenance. At the same time, the industry will gradually form unified global dimensional compatibility standards for GCS, GCK and MNS series products, solving the problem of poor universality of spare parts and reducing the overall operation and maintenance cost of the power distribution system.
9. FAQ
Q1: What are the essential differences between GCS, GCK and MNS withdrawable switchgear?
MNS is a European standardized modular product with the highest flexibility of combination, suitable for complex multi-circuit and multi-scene composite power distribution; GCS is optimized for industrial heavy-load working conditions, with stronger structural stability and short-circuit resistance, suitable for manufacturing workshops; GCK has a more compact structure, focusing on control circuit scenarios, with higher space utilization, suitable for public buildings and light industrial scenarios.
Q2: Can the withdrawable drawer unit be replaced with power on?
The drawer replacement operation is carried out in the fully pulled-out isolation state, and the single circuit is completely disconnected from the main busbar, which belongs to power-off operation of a single circuit. The whole cabinet can keep normal power supply during replacement, realizing non-stop maintenance of the whole system, which is the core advantage different from fixed switchgear.
Q3: What is the service life of the withdrawable switchgear drawer unit?
Under standard working conditions and regular maintenance, the mechanical plugging life of the drawer unit can reach more than 10,000 times, and the overall service life of the equipment is 15-20 years. Regular cleaning of conductive plugs and inspection of interlock mechanism can effectively extend the service life.
Q4: What working conditions are not suitable for withdrawable switchgear?
It is not suitable for high-corrosion, high-dust and strong-vibration extreme industrial environments for a long time, because severe vibration will affect the plugging contact stability of the drawer unit, and corrosive gas will accelerate the oxidation and aging of conductive components and insulating parts.
